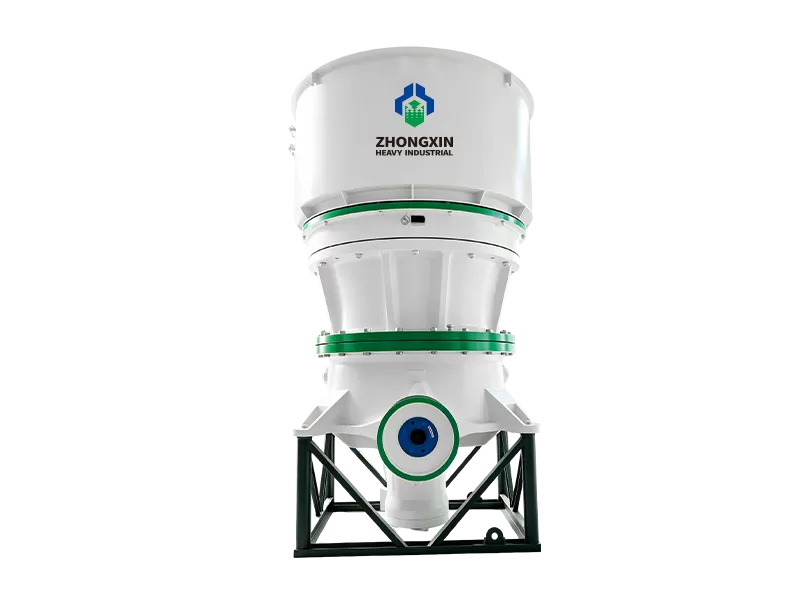

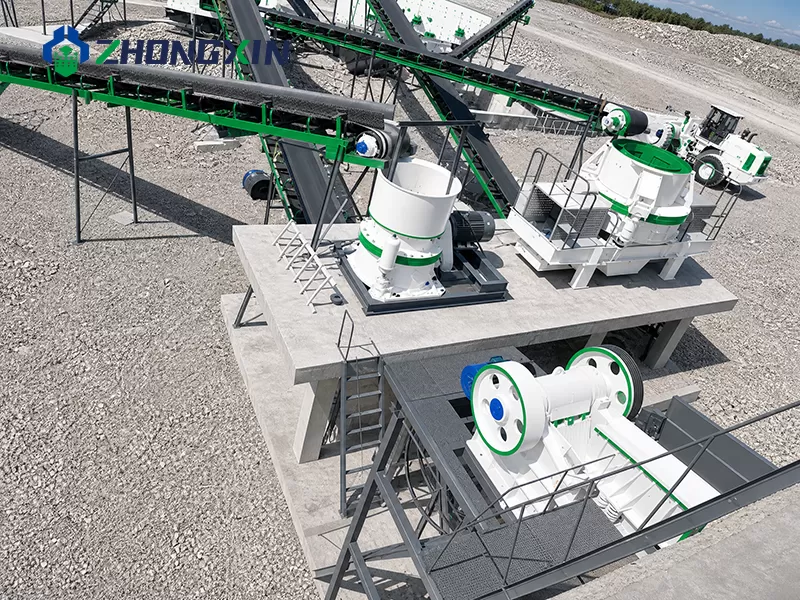

Single Cylinder Hydraulic Cone Crusher

Single cylinder hydraulic cone crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

It can break or crush all kinds of medium hard or harder ore for mining, chemical building, materials and other industrial sectors.


This kind of machine has the features of crushing ratio, continuous operating, even granularity, automated hydraulic clearing system, capacity, simple structure and low operating cost, suited for middle and fine crushing.

FeaturesWhatsapp/Wechat:+86-13676922906

1, Good grain shape and efficiency.

2, Crushing capacity.
3, Run continuously and stably.

4, Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.

5, Adopt direct meta-contacting method, which facilitates replacing liner plates of mobile cone and stationary cone.

6, Double insurance controlled hydraulic and lubrication system can ensure the machine's overload protection and good bearing lubrication.

7, Easy maintenance: The structure of cone crusher is simple and compact. It has the features of stable performance, not easy to fault and convenient maintenance.

Working PrincipleEmail:sales@zxcrusher.com

SpecificationWhatsapp/Wechat:+86-13676922906

Model	DP100S	DP100	DP430S	DP430	DP440S	DP440	DP660S	DP660	DP780S	DP870
Weight (kg)	7350	5700	12000	9200	19300	14300	35700	26800	53865	49800
Maximum inspection weight (kg)	2800	2000	5200	3000	8200	4800	16800	8600	21264.1	13200
Power(kW)	90	90	132	132	220	220	315	315	400	500



Model	Cavity	Max feeding size (mm)	The capacity of Corresponding Discharge opening size（t/h）
			19mm	22mm	25mm	29mm	32mm	35mm	38mm	41mm	44mm	48mm	51mm	54mm	60mm	64mm	70mm	76mm
DP430S	EC Supre Coarse	360			126	138-173	147-230	156-293	165-310	174-327	183-344	196-306	205-256
	C Coarse	300		108	116-145	127-199	135-254	144-270	152-285	161-301	196-264	108
	MC Medium Coarse	235	91	98-123	106-166	116-218	124-232	131-246	139-261	147-275	154-241	165
DP440S	EC Super Coarse	450						267	282-353	298-446	313-563	334-601	350-524	365-456
	C Coarse	400				225	239-299	254-381	269-484	284-511	298-448	318-398	333
	MC Medium Coarse	300			195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317
DP660S	EC Super Coarse	560								349	368-460	392-588	410-718	428-856	465-529	489-978	525-1050	562-983
	C  Coarse	500							318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631




Model

Cavity

Max feeding size (mm)

The capacity of Corresponding Discharge opening size（t/h）

60mn

64mm

70mm

76mm

83mm

90mm

96mm

100mm

110mm

120mm

DP780S

EC Supre Coarse

680

436

460-658

500-840

512-1025

612-1223

663-1327

700-1398

750-1500

800-1400

850

Model

Cavity

Max feeding size   (mm)

The capacity of Corresponding Discharge opening size（t/h）

20mm

25mm

30mm

35mm

40mm

45mm

DP100s

SM Supre Coarse

170

85-90

105-145

125-175

145-200

165-215



Model	Cavity	Max feeding size (mm)	The capacity of Corresponding Discharge opening size
			6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm	57mm	64mm	71mm
DP100	M Medium	105			55-60	60-85	65-95	70-100	75-90
	MF Medium fine	85		45-50	50-70	55-80	60-85	65-90	65-80
	EF Super fine	32	40-55	40-60	45-70	55-75	60-75	65
DP430	EC Super coarse	185				69-108	75-150	80-161	86-171	91-182	104-208/	115-208
	C Coarse	145				66-131	71-142	76-152	81-162	86-173	98-197	109-150
	MC Medium coarse	115			57	62-140	67-151	72-162	77-173	82-184	93-145
	M Medium	90			64-84	69-131	75-142	80-152	86-162	91-154	104
	MF Medium fine	75		61	65-106	70-115	76-124	81-126	87-114	92
	F Fine	50	48-78	51-83	54--88	59-96	63-103	68-105	72-95	77
	EF Super Fine	35	70-90  ,80％<5mm-5.6mm
DP440	EC Super coarse	215					114-200	122-276	131-294	139-313	159-357	175-395	192-384
	C Coarse	175				101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
	MC Medium coarse	140				97-122	105-262	113-282	120-301	128-320	146-328	161-242
	M Medium	110				117-187	126-278	136-298	145-318	154-339	175-281	194
	MF Medium fine	85			114	124-227	134-245	144-263	153-281	163-299	186-248
	F Fine	70		90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
	EF Super fine	38	100-125,  80％<6mm-7.5mm
DP660	EC Super coarse	270					177	190-338	203-436	216-464	246-547	272-605	298-662	328-511
	CX Super coarse	235					174-194	187-374	200-488	212-519	242-592	268-654	293-521	323-359
	C Coarse	215					171-190	184-367	196-480	209-510	238-582	263-643	288-512	317-353
	MC Medium coarse	175					162-253	174-426	186-455	198-484	226-552	249-499	273-364
	M Medium	135					197-295	211-440	226-470	240-500	274-502	302-403
	MF Medium fine	115				192	207-369	222-396	237-423	252-450	287-451	318-363
	F Fine	90				195-304	210-328	225-352	241-376	256-400	292-401	323
	EF Super fine	65				211-293	227-316	244-298	261-290
DP870	EC Super coarse	300							448-588	477-849	544-968	601-1070	658-1172	725-1291	782-1393	849-1512	906-1331
	C Coarse	240						406	433-636	461-893	525-1018	581-1125	636-1232	700-1357	756-1464	820-1461	876-1286
	MC Medium coarse	195						380-440	406-723	432-837	492-954	544-1055	596-1155	657-1272	708-1373	769-1370	821-1206
	M Medium	155						400-563	428-786	455-836	519-953	573-1054	628-1154	692-1271	746-1372	810-1248	865-1098
	MF Medium fine	100					379-424	407-716	434-765	462-814	527-928	852-942	638-789	702
	F Fine	90				357-395	385-656	414-704	442-752	470-800	535-912	592-857	649-718
	EF Super fine	80			280-405	304-517	328-558	352-598	376-639	400-680	455-775	503-758	551-669
