Sand Making Machine

Type:Tertiary Crusher

Capacity:60-640TPH

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Speed:900-1930(r/min)

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Share To

Sand Making Machine used to produce artificial sand and plaster sand; sand manufactured by crushing “Grit” , The sand making machine is specially designed for manufacturing artificial sand from the grit. It is a better utilization of the  size of rock materials and stones through rock on rock metal machine mechanism roughly.

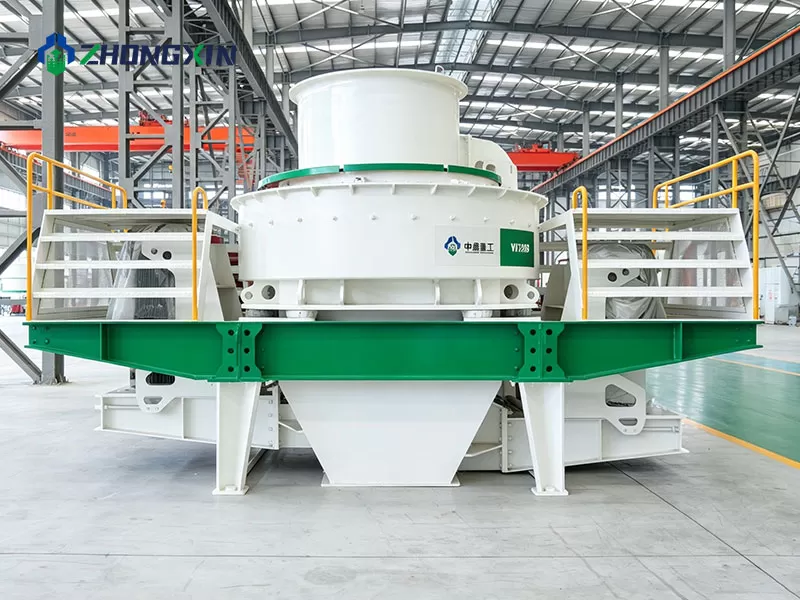

sand making machine

FeaturesWhatsapp/Wechat:+86-13676922906

1、Sand Making machine ,“stone striking stone” working principle, low electricity consumption.

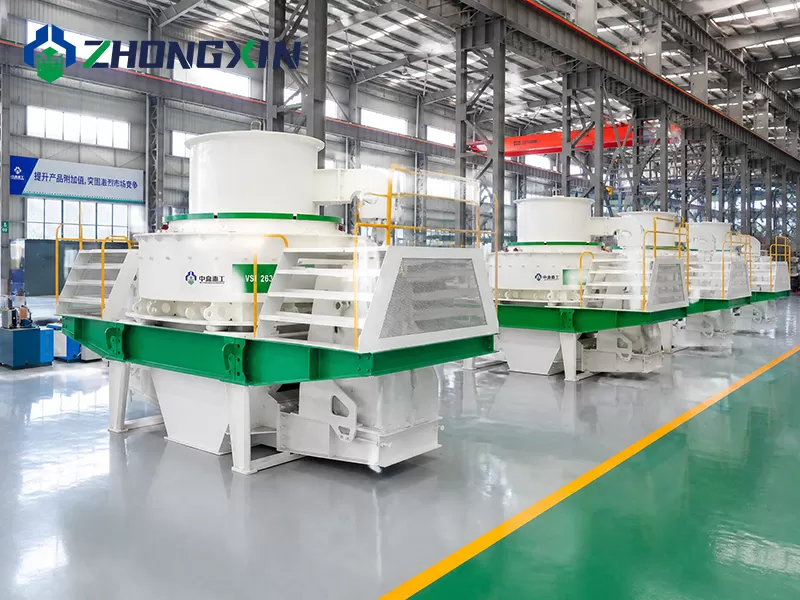

sand making machine

2、Strong ability of through the non-crushing material, low effects by the material moisture content.

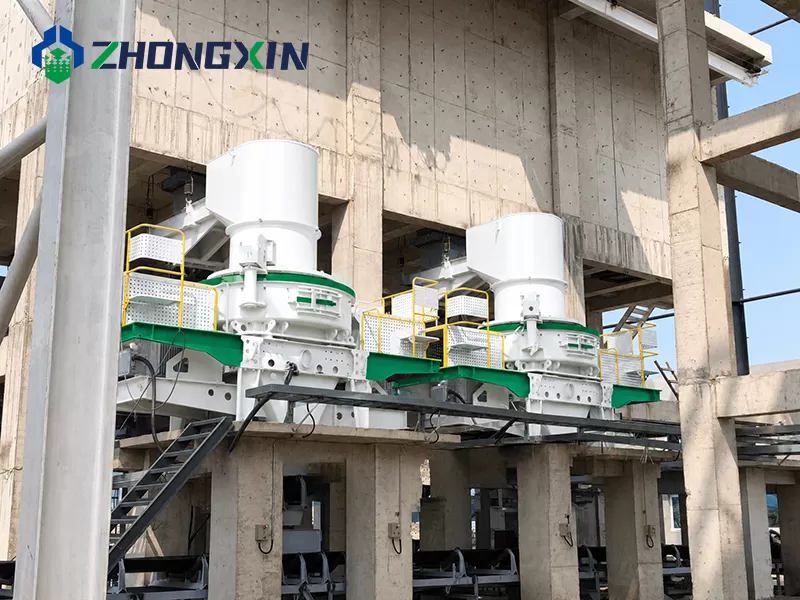

VSI Sand Making Machine

3、Suitable to crush stones with mid-hardness, high hardness, and super high hardness.

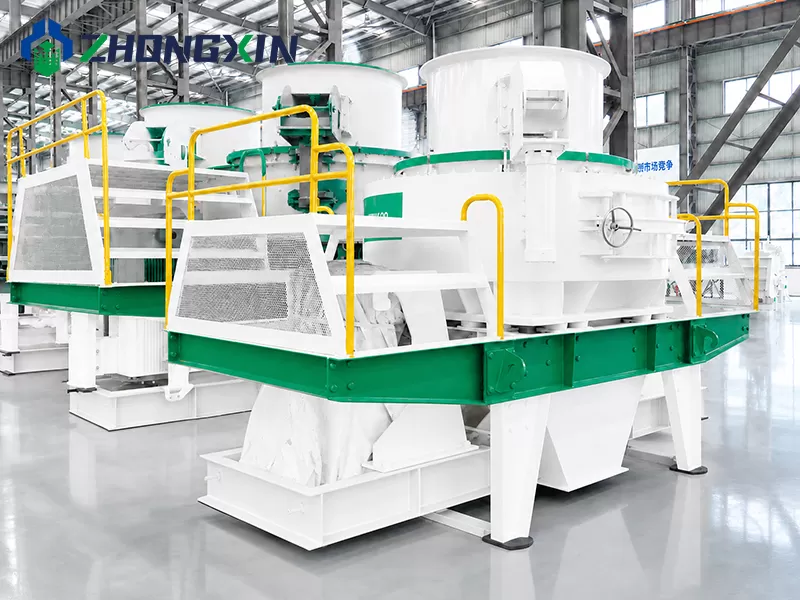

VSI Sand Making Machine

4、Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.

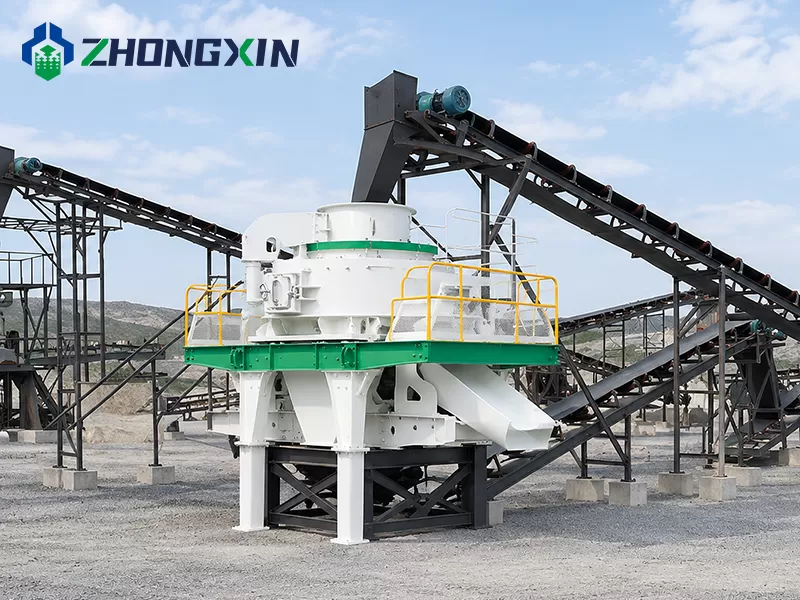

VSI Sand Making Machine

5、Simple structure, low cost, easy operation/ maintenance and installation.

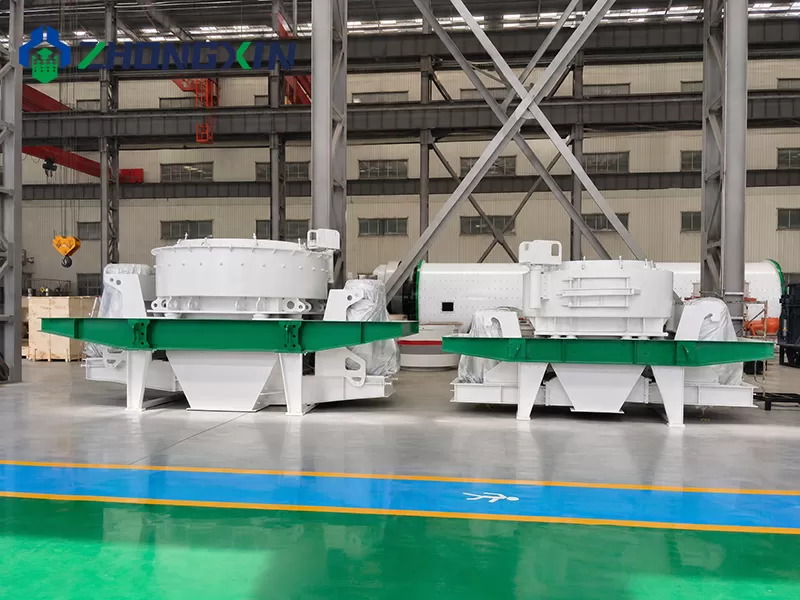

VSI Sand Making Machine

6、Sand Making machine,Low noise and the dust pollution.

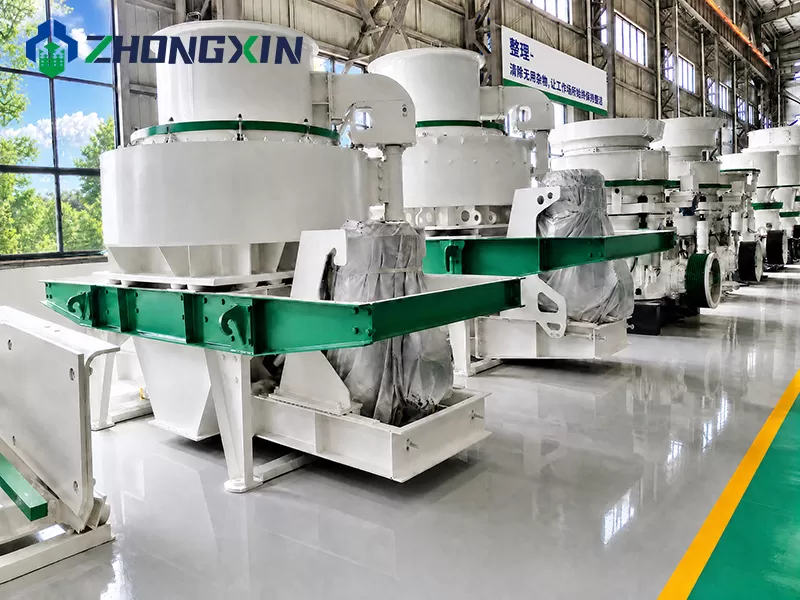

VSI Sand Making Machine

7、Low weight and various installation, can be installed on mobile.

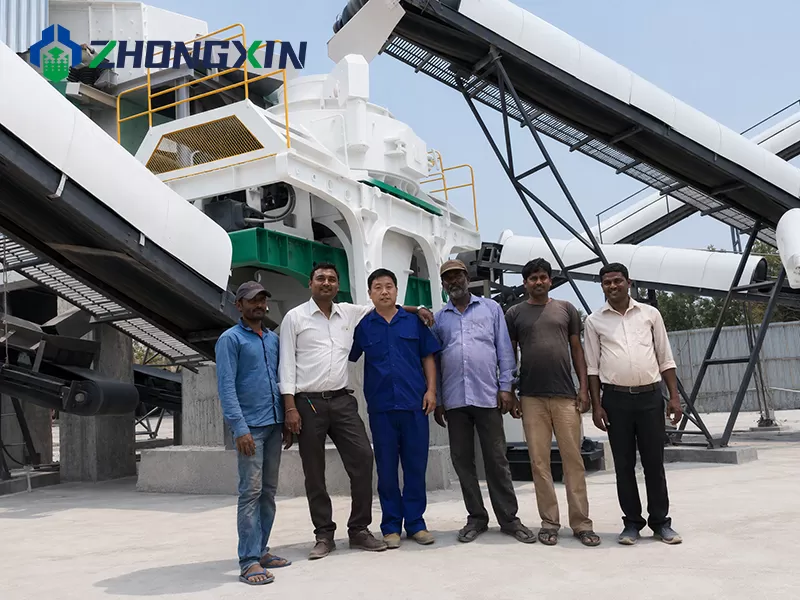

VSI Sand Making Machine

Working PrincipleEmail:sales@zxcrusher.com

Sand making machine consist of a rotor which revolves a high speed and throws stone particle at vigorous velocity.

VSI Sand Making Machine

These stone particles collides on anvil or autogenious stone lining in crushing chamber. The stone particles having kinetic energy when it strikes on crushing chamber brakes into small cubical particles. Crushed particles comes out from the outlet at the bottom of the machine.
VSI Sand Making Machine

SpecificationWhatsapp/Wechat:+86-13676922906

Model VSI7611 VSI8518 VSI9526 VSI1140 VSI1145 VSI1150 VSI1263
Capacity (T/H) Surrounding feed and center feed 120-180 200-260 300-380 450-520 500-640 413-683 545-583
Full center feed 60-90 100-130 150-190 225-260 250-360 344-368 454-486
The max feeding size(mm) Soft stone ≤35 ≤40 ≤45 ≤50 ≤50 ≤50 ≤60
Hard Material ≤30 ≤35 ≤40 ≤45 ≤45 ≤45 ≤50
Speed(r/min) 1700-1930 1520-1690 1360-1510 1180-1300 1200-1390 1200-1390 900-1150
Double motor power(kW) 2×55 2×90 2×132 2×200 2×220 2×250 2×315
Dimension L×W×H (MM) 4100×2250 ×2315 4160×2300 ×2476 4540×2500 ×2911 5000×2716 ×3117 5450×2900 ×3330 5450×2900 ×3365 5700×2980
×3530
Weight (t) 8 12 13 18.5 19.5 19.8 19
Lubrication station Double oil pump motor power(kW) 2×0.55kW
Security One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter.
Over Dimension L×W×H(mm) 1200Х790Х1120
Tank heater power(kW) 2
