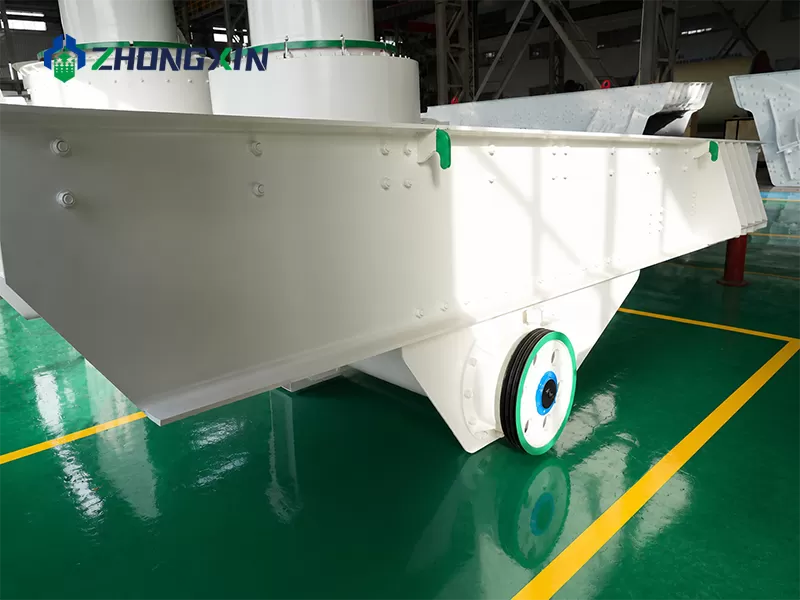

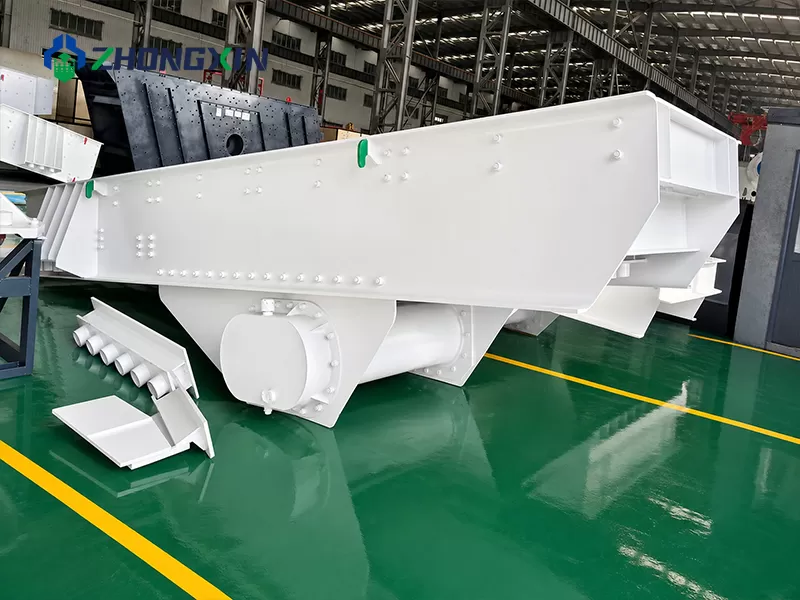

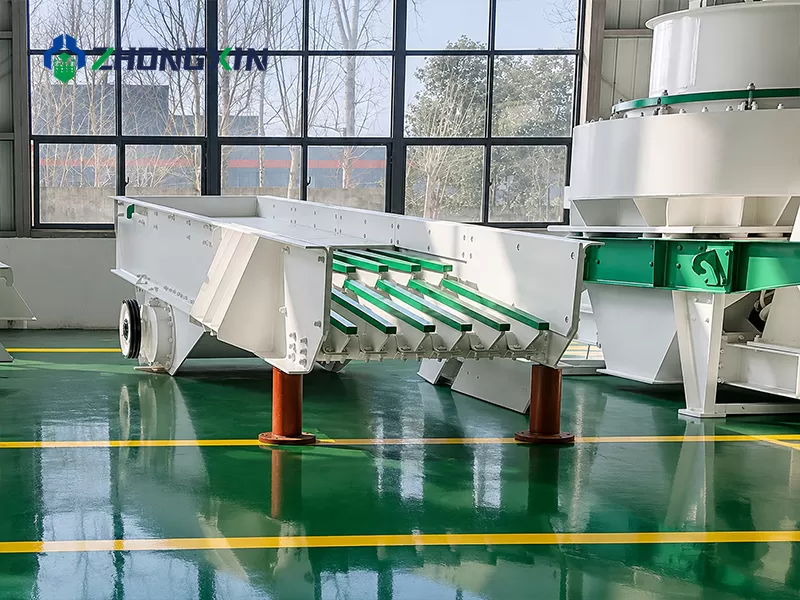

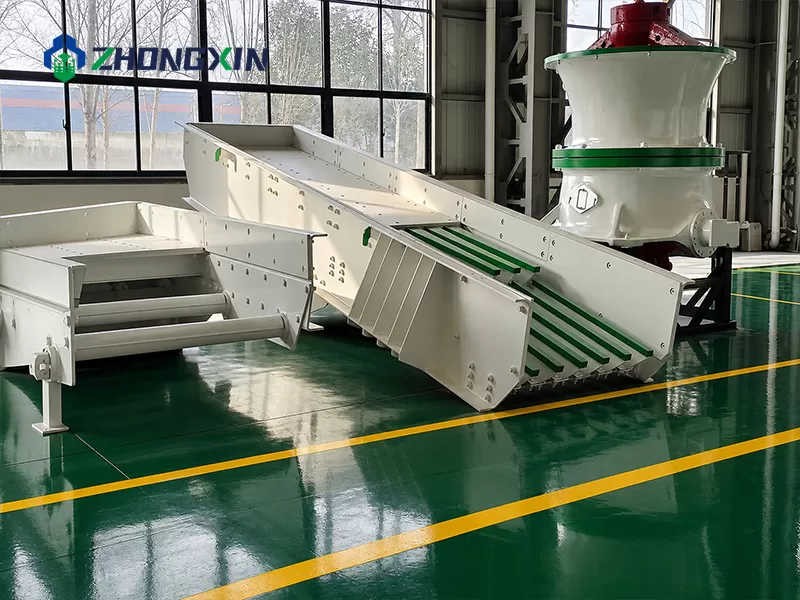

ZSWT Series Vibrating Feeder

ZSWT series vibrating feeder is mainly used for continuous and uniform feeding in front of the primarycoarse crusher.At the same time,the fine material can be sieved,which greatly increases the production capacity of the crusher.

FeaturesWhatsapp/Wechat:+86-13676922906

1 . Smooth vibrating.

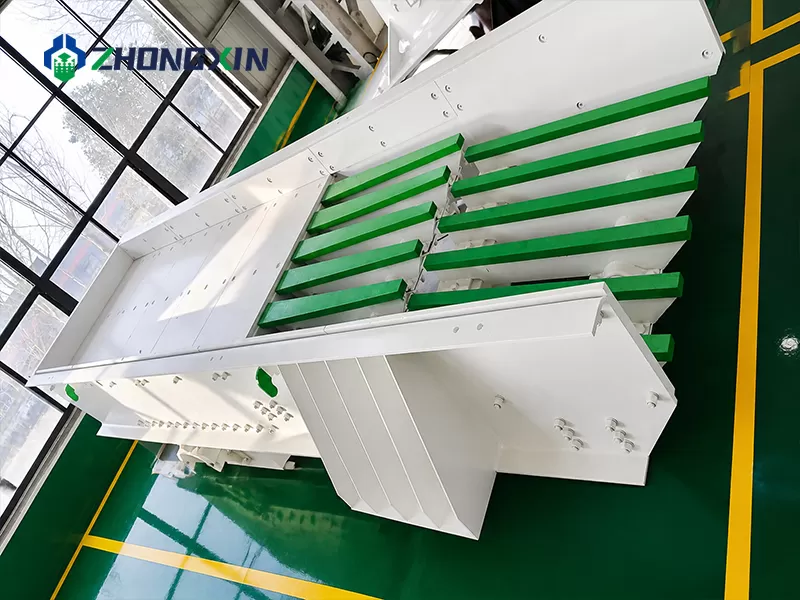

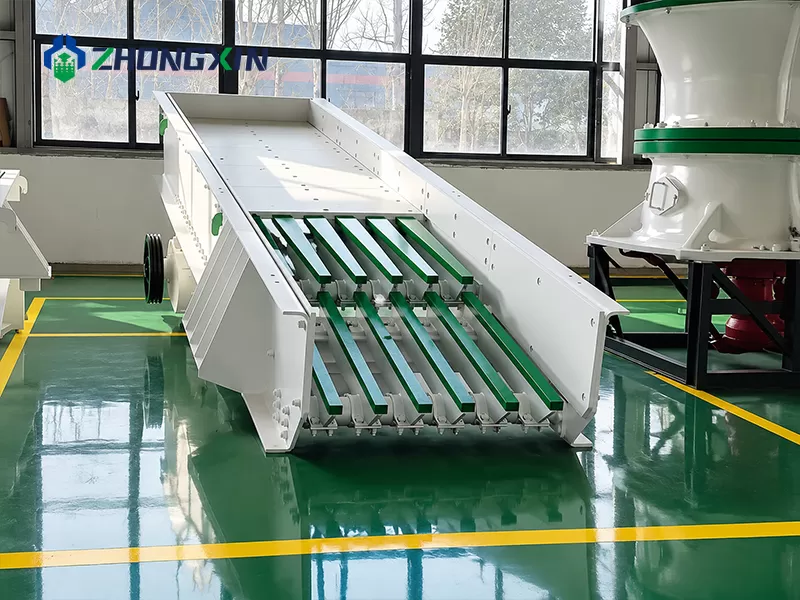

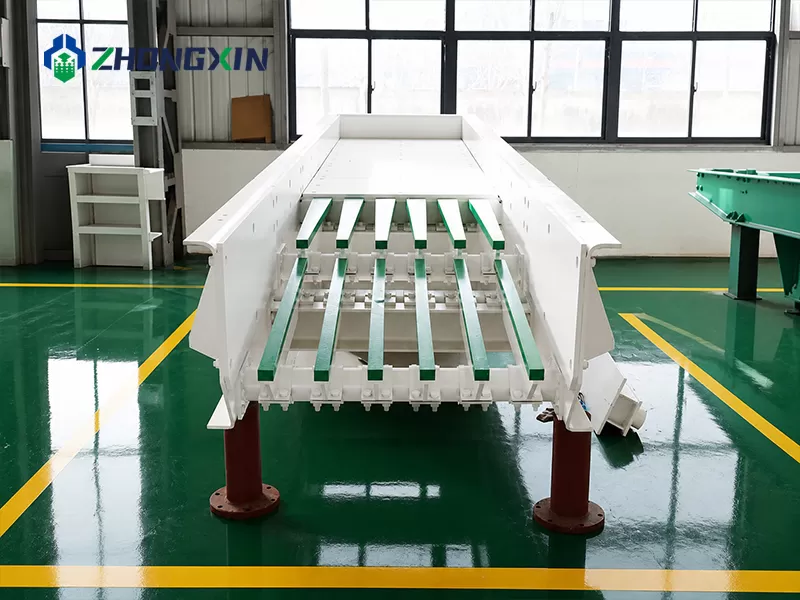

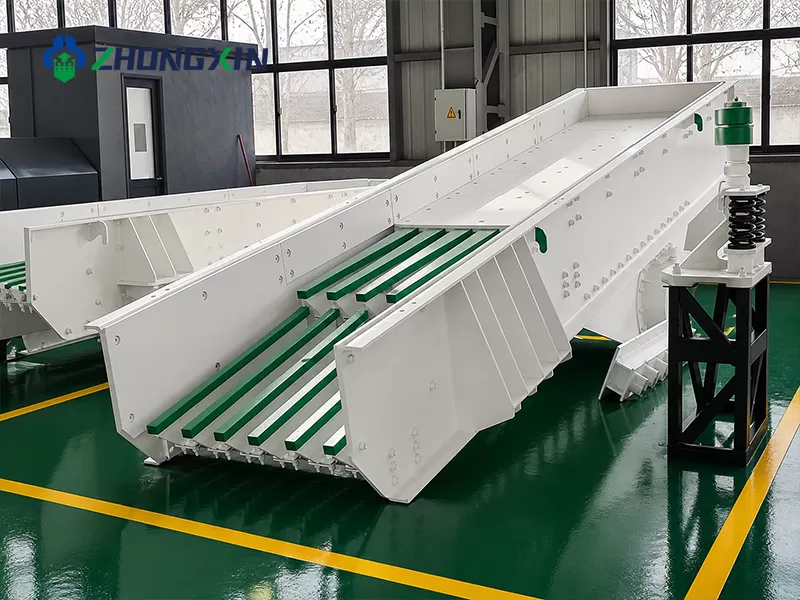

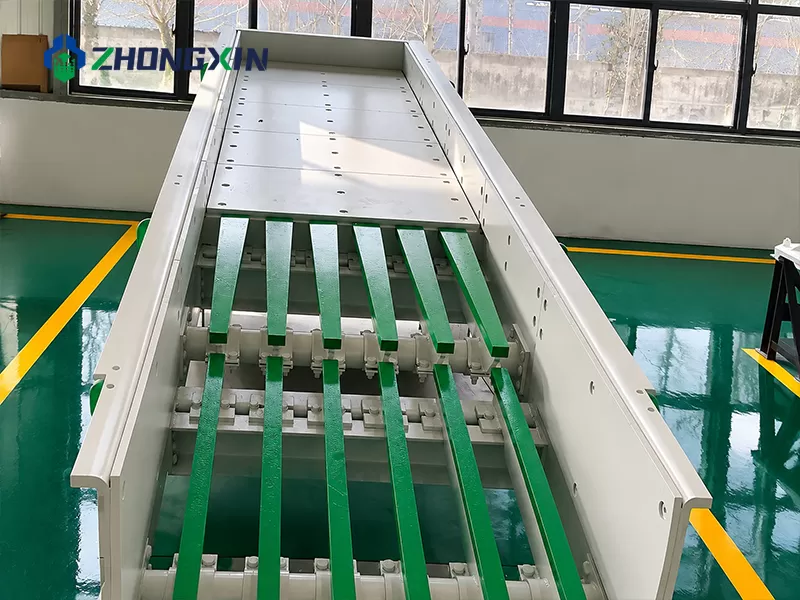

2 .Stepped screen strip design can effectively prevent materials from being blocked.

3 .The gap of the grid is adjustable.

4 . Frequency conversion motor can be installed,which is convenient for controlling the feeding amount,without frequent starting of the motor.

Working PrincipleEmail:sales@zxcrusher.com

The working principle of vibrating feeder is mainly based on the action of vibration force. It generates vibration through mechanical or electromagnetic means to make the material jump forward in the trough, thereby achieving the purpose of conveying and feeding.

SpecificationWhatsapp/Wechat:+86-13676922906

Model	Max feed size (mm)	Capacity (t/h)	Motor power (kw)	Overal dimensions (mm)	Weight (kg)	Size of Funnel(mm)
ZSWT490×110	580	120-300	15	4957×2371×2125	5618	4900×1100
ZSWT600×130	750	400-660	37	6080×2671×1970	8350	6000×1300
ZSWT600×160	800	460-800	37	6086×3050×2130	9000	6000×1600
ZSWT600×200	1400	600-1500	45	3080×4094×1810	15094	6000×2000
