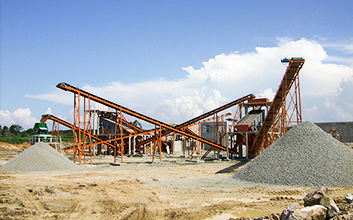

Sand production line mainly consists of vibrating feeder, jaw crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor, electric control panel, etc, and capacity is 50-500T/H.
Applications：1、It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.
2、The production line includes two European Type jaw crushers, vibrating screen, vertical shaft impact crusher and sand washing machine.
The sand production line consists by vibrating feeder, jaw crusher, sand making machine, vibrating screen and belt conveyor and other mining equipment. According to different process requirements, various types of mining equipment can be combined to meet the technological requirements of different customers.

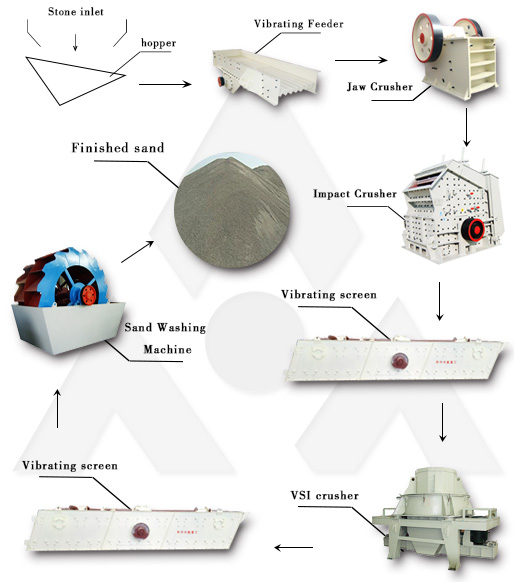

The stone was broken by primary crushing machine such as jaw crusher, impact crusher, then, the coarse sand grain was transported by belt conveyor to secondly crusher such as cone crusher for further crush. Then the broken small stone can be screened out the two major sands via vibrating screen, one kind can be transported to sand making machine, the other will be crushed again.

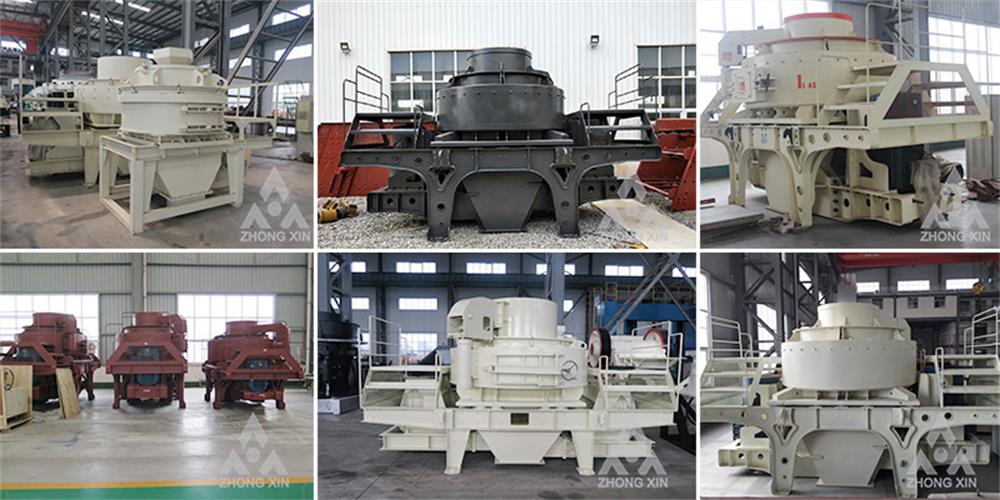

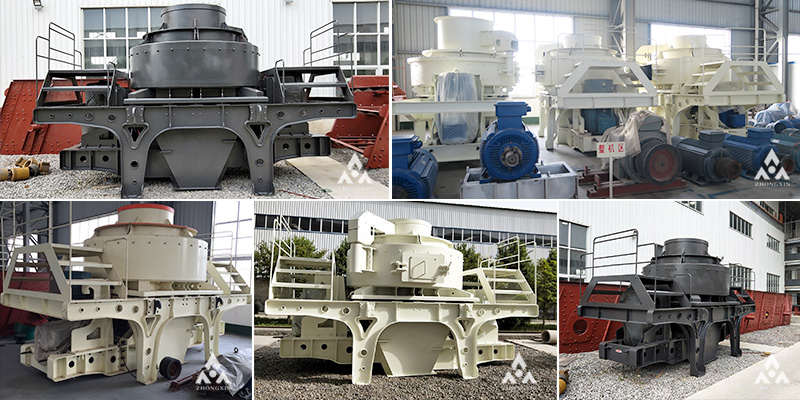

VSI CrusherFeed range: 30-50mm
Hydraulic Cone CrusherFeed range: 30-50mm
Jaw CrusherFeed range: 30-50mm
YK Vibrating ScreenFeed range: 30-50mm
Vibrating FeederFeed range: 30-50mm|
Model
|
VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
| Capacity (T/H) | Center And Ring Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
|
Best Feed Size (MM) |
Soft Material | 35 | 40 | 45 | 50 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | 45 | |
| Rotation Speed (R/MIN) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1200-1390 | |
| Power For Double Motor (KW) | 110 | 180 | 264 | 400 | 440 | |
| Dimension L×W×H (MM) | 3700×2150 ×2100 | 4140×2280 ×2425 | 4560×2447 ×2778 | 5000×2700 ×3300 | 5100×2790 ×3320 | |
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | 26 | |
| Power Soppty | 380V 50Hz | |||||
| Vibrating Sensor | Monitering Range:0.1-20MM/S Continuousely Adjustable | |||||
| Lubrication Hydraulic Station | Dual Oil Bump Motor Power | 2×0.25kW | ||||
| Security Protection | Double Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter. | |||||
| Over Dimension L×W×H(mm) | 820×520×1270 | |||||
| Oil Tank Heating Power | 2KW | |||||
Raw material : mountain stone
Capacity : 300 t/h
Equipment Configuration :ZSW130x600 vibrating feeder+ PE900x1200 jaw crusher+ XHP400 hydraulic cone crusher+ 6sets belt conveyor+ 4YK2470 circular vibrating screen

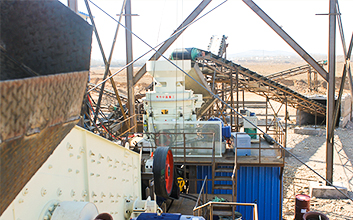

Raw material : Aggregate Stone
Capacity : 200 t/h
Equipment Configuration :ZSW490x110 vibrating feeder+ PE750x1060 jaw crusher+ XHP300 hydraulic cone crusher+ 4sets belt conveyor+ 2YK2160 circular vibrating screen+ 3YK2160 circular vibrating screen
